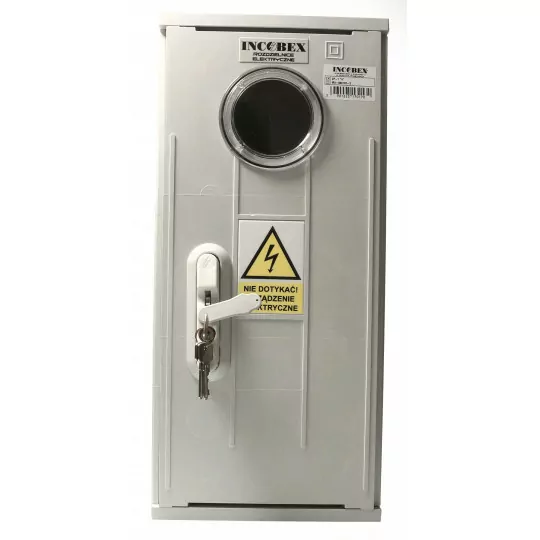

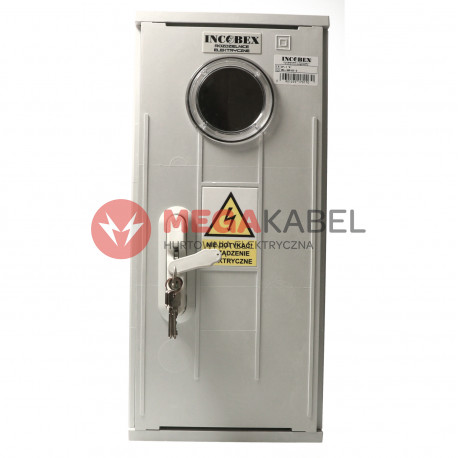

Measurement connector ZP-1 A IRA-030102-2 Incobex

Product description

Metering connector is used for the installation of electrical circuits-most often metering circuits. It is an additional protection of the entire installation circuit. Metering covers are used in single-family homes as well as public places. Metering cable connectors have a dual function - they provide the possibility of a safe connection between the building (object) and the power grid, and also, thanks to the possibility of mounting a meter, the measurement of transported energy.

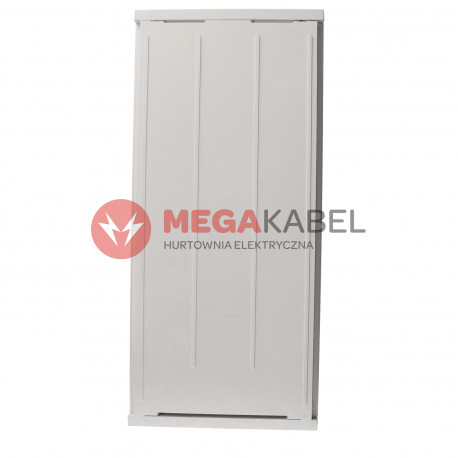

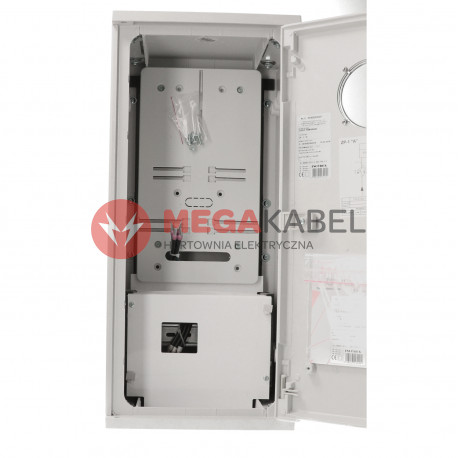

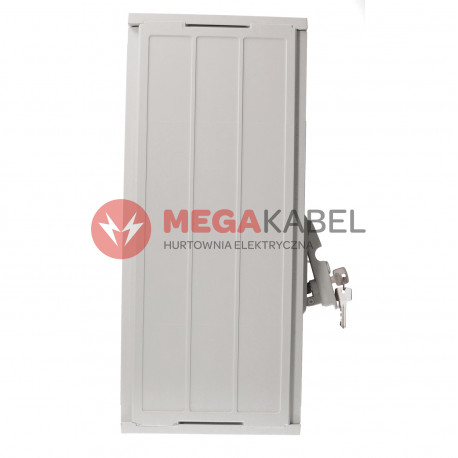

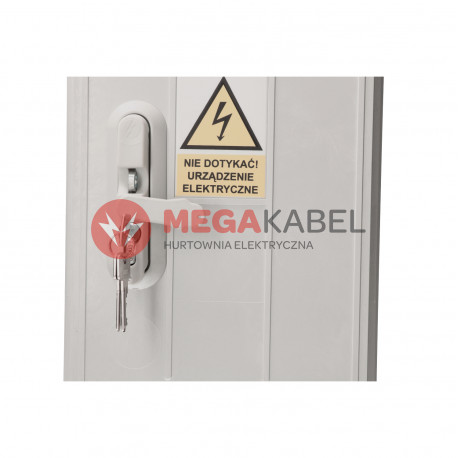

The product is made of plastic and the addition of fiberglass. It is a durable and robust construction that will protect the installation even for several years. Inside the connector are mounted all the elements needed to connect the installation. There are brackets and mounting channels on which the installation will be easy and convenient. Free-standing connectors are equipped with an additional foundation, which allows you to place the connector in a trench. The kit includes a key!

Technical data:

• rated insulation voltage: 500 V
• rated operating voltage: 230/400 V
• rated continuous current: 63 A
• degree of protection: IP44
• protection class: II
• working system: TN
• enclosure type: STN 26x58
• 2 x bracket
• 1 x TL-3 meter board
• 1 x mounting channel
• 1 x PEN terminal
• supply cables maximum: 1x 5x16 mm
• outlet cables maximum: 1x 5x16 mm
• connections made with LGY 10 wire
• type "A" version
