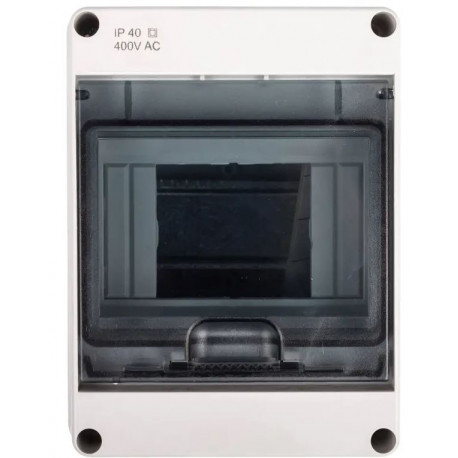

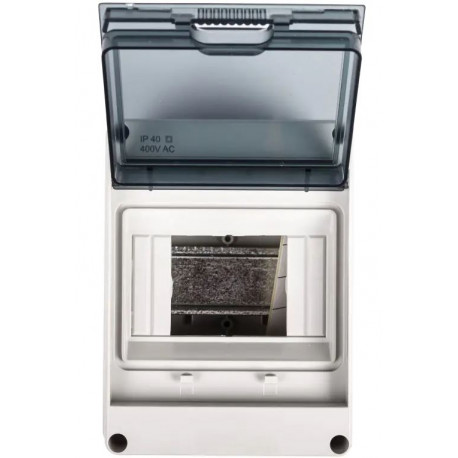

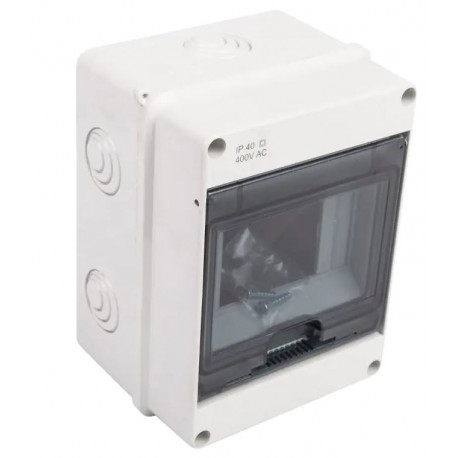

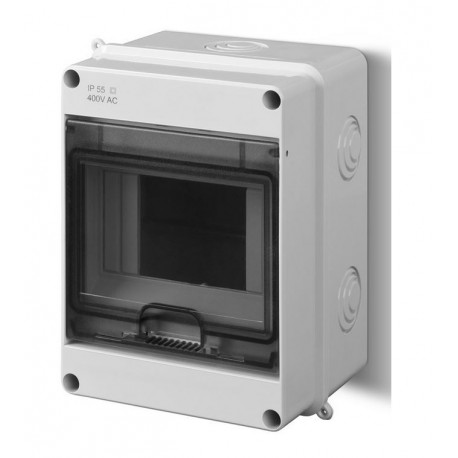

Modular distribution board 1x5 surface-mounted EP-LUX PLUS RN 1901-01 ELEKTRO-PLAST Nasielsk

Product description

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

Technical data:

• Width [mm]: 118
• Depth [mm]: 95
• Color: White
• RAL number: 9003
• Degree of protection (IP): IP40
• Housing material: Plastic
• Height [mm]: 158
• Cover type: Closed
• Embedded depth [mm]: 0
• Mounting method: Surface mounting
• Number of rows: 1
• Width expressed in number of modules: 5
