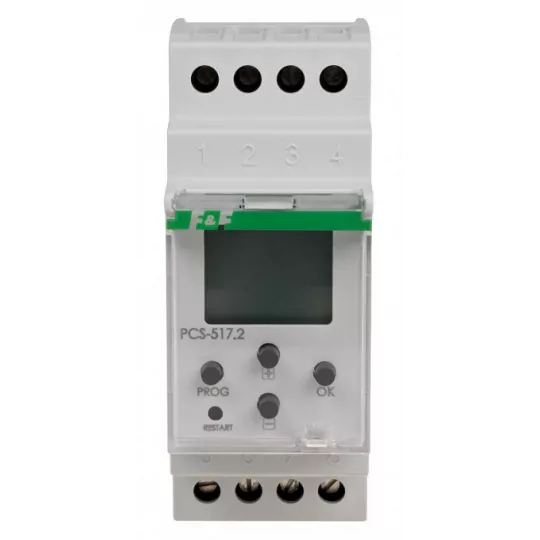

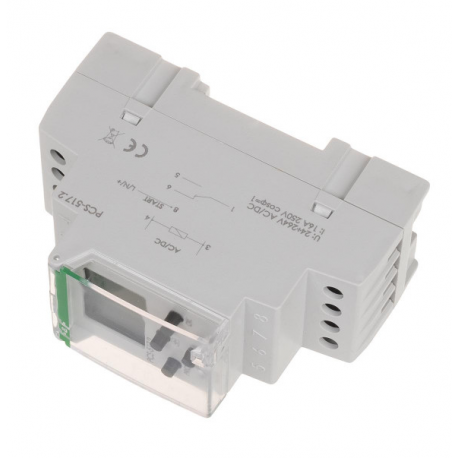

Time relay PCS-517 1P 16A 24-264V F&F

Product description

Time relays are used for time control in industrial and home automation systems (e.g.:ventilation, heating, lighting, signaling, etc.). The relay is triggered by a supply voltage and additionally by a control input. The PCP-04 has 8 independent operating modes triggered by the supply voltage or an external trigger pulse (coming from the L or N line). The time relay features a very wide range of time settings. The device has a relay status indicator - realized by means of an LED. The design of the device makes it possible to install it in a fi60 installation box.

The <<F&F>> company was established in 1992 on the basis of a trading and service company operating in the electronics industry. Its previous marketing experience, as well as technical experience in electronics and electrical engineering, allowed the company to create a manufacturing company offering a wide range of electronic control devices. Originally, the company's offerings were mainly timers and phase loss sensors. The company's strategy is based on constantly expanding its offerings and occupying attractive market niches. Today, F&F's offerings include a wide range of devices for home and industrial automation needs.

Technical specifications:

• With START input
• Power supply: 24-264V AC/DC
• Load current: <16A
• Contact: separated 1P
• Control pulse current: <1mA
• Time setting range: 0.25sec-99h59min59sec 75/100
• Tripping delay for functions triggered by supply voltage: 500msec
• Power consumption: 1,5W
• Operating temperature range: -20°C...50°C
• Connection: 2.5mm2 screw terminals
• Dimensions: 2 modules (35mm)
• Mounting: on TH-35 rail
