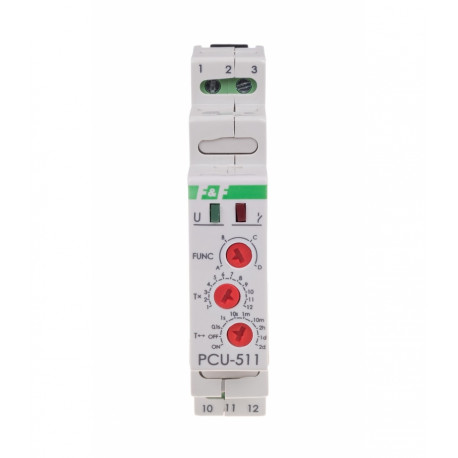

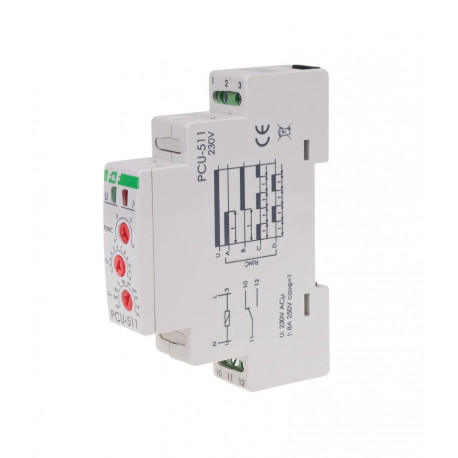

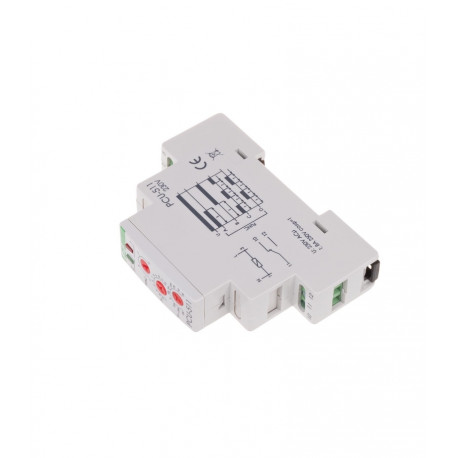

PCU-511 1P 8A 230V multifunctional time relay F&F

Product description

Time relays are used for time control in industrial and home automation systems (e.g.:ventilation, heating, lighting, signaling, etc.). The relay is triggered by a supply voltage and additionally by a control input. The time relay is characterized by a very wide range of time settings. The device has a relay status indicator - realized by means of an LED. The design of the device makes it possible to install it in an installation box fi60.

Technical data:

• 1P contact
• Power supply: 230V AC
• Load current: <8A
• Contact: separated 1P
• Operating time setting range: 0.1sec÷576 hrs.
• Tripping delay: <50msec
• Power supply signaling: green LED
• Contact status indication: red LED
• Power consumption: 0.8W
• Operating temperature range: -25°C...50°C
• Dimensions: 1 module (18mm)
• Mounting: on TH-35 rail
• IP 20
