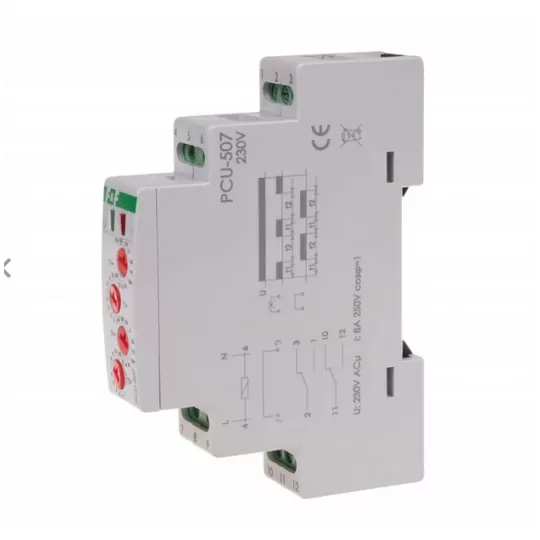

Time relay 2P 8A AC 230V PCU-507 F&F

Product description

Time relays are used for time control in industrial and home automation systems (e.g.:ventilation, heating, lighting, signaling, etc.). The relay is triggered by the supply voltage and additionally by the control input. PCP-04 has 2 independent operating modes. The time relay is characterized by a very wide range of time settings. The design of the device makes it possible to mount it in an installation box fi60.

The <<F&F>> company was established in 1992 on the basis of a trading and service company operating in the electronics industry. Its previous marketing experience, as well as technical experience in the field of electronics and electrical engineering, allowed it to create a manufacturing company offering a wide range of electronic control devices. Originally, the company's offerings were mainly timers and phase loss sensors. The company's strategy is based on constantly expanding its offerings and occupying attractive market niches. Today, F&F's offerings include a wide range of devices for home and industrial automation needs.

Technical data:

• Supply voltage 230 V AC
• Operation mode cyclic operation
• Executive element relay
• Maximum load current 2 × 8 A
• Contact configuration 2 × NO/NC
• Contact separation YES
• Activation delay 50 ms
• LED red contact status indication
• Operation time - adjustable 0 .1 s ÷ 576 hrs.
• LED power signaling green
• Interruption time - adjustable 0 .1s ÷ 576 hrs.
• Connection screw terminals 2.5 mm²
• Tightening torque 0.4 Nm
• Power consumption 0,8 W
• Operating temperature -25 ÷ 50 °C
• Dimensions 1 module (18 mm)
• Mounting on 35 mm rail
• Degree of protection IP20
