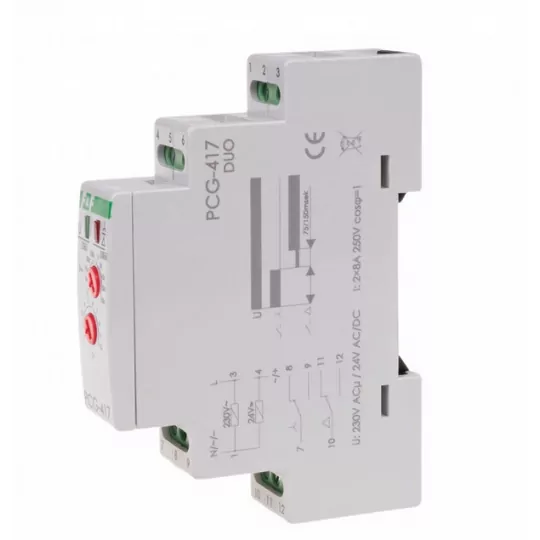

PCG-417 duo star-delta time relay F&F

Product description

Time relays are used for time control in industrial and home automation systems (e.g.:ventilation, heating, lighting, signaling, etc.). The relay is triggered by a supply voltage and additionally by a control input. The time relay is characterized by a very wide range of time settings. The device has a relay status indicator - realized by means of an LED. The design of the device makes it possible to mount it in an installation box fi60.

The <<F&F>> company was established in 1992 on the basis of a trading and service company operating in the electronics industry. Its previous marketing experience, as well as technical experience in electronics and electrical engineering, allowed the company to create a manufacturing company offering a wide range of electronic control devices. Originally, the company's offerings were mainly timers and phase loss sensors. The company's strategy is based on constantly expanding its offerings and occupying attractive market niches. Today, F&F's offerings include a wide range of devices for home and industrial automation needs.

Technical data:

• power supply: 230V AC / 24V AC/DC
• load current: 2×(<8A)
• contact: 2× separated 1P
• STAR start-up time: 1÷1000sec
• switching time: 75msek / 150msek
• power signaling: green LED
• operation signaling: red LED
• power consumption: 0.8W
• working temperature: 25÷50°C
• connection: 2.5mm² screw terminals
• dimensions: 1 module (18mm)
• mounting: on TH-35 rail
